MPW5 submitted!
We submitted for MPW5!
We had 8 submissions from the course, the shared SRAM infrastructure, and I updated my demo designs.
We also had some people from the course make personal applications for a whole chip:
- Steve & Zhenle - PSRAM (HyperRAM) interface with an ACORN PRNG,
- Q3K - simple, microcontroller-style SoC based around a Lanai core,
- Maximo - Hardware implementation of the Hack Computer from the Nand to Tetris courses,
- Zbigniew - A rendering circuit for three blobs and a playable tetris clone.
And thanks to Paweł for updating the shared SRAM blocks.

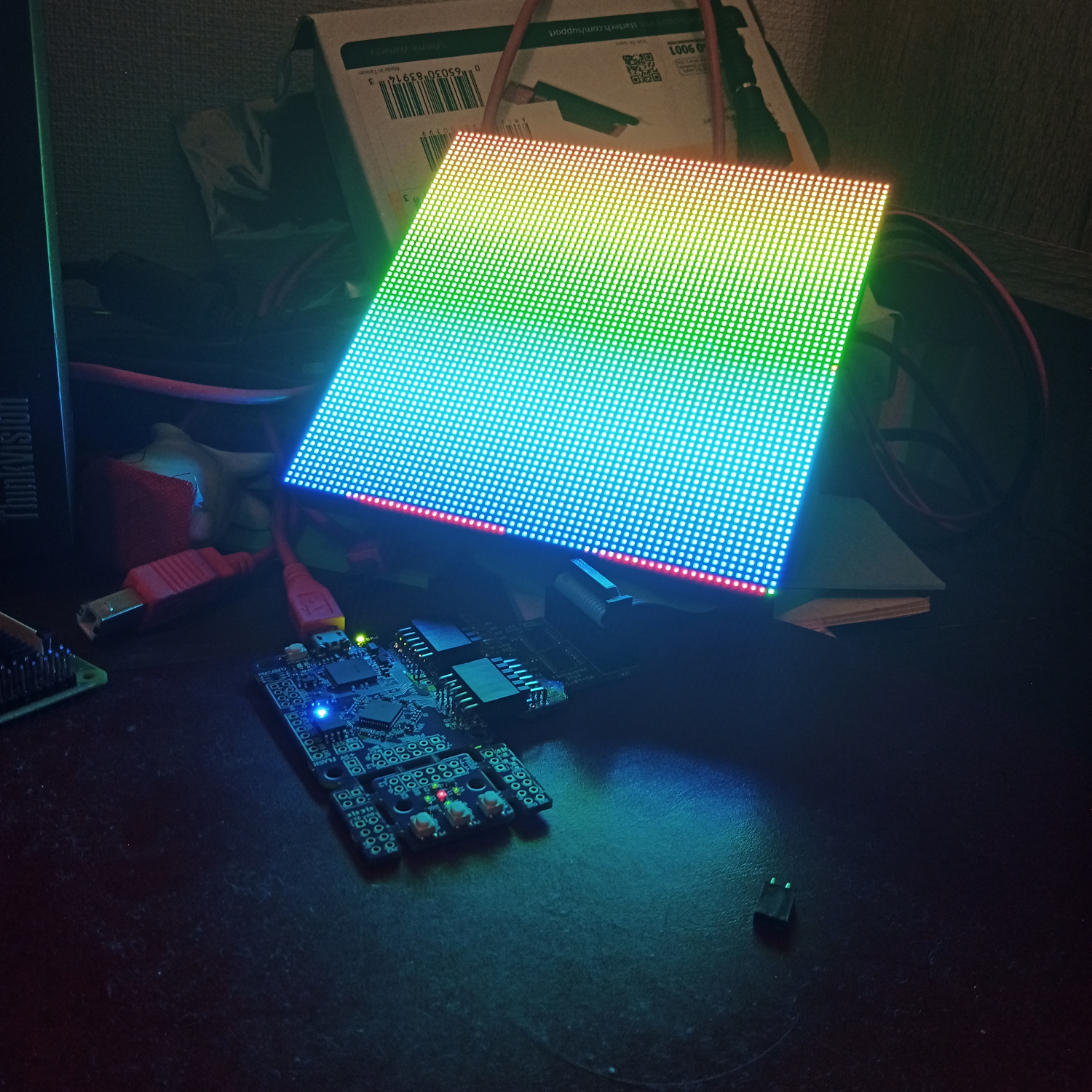

Following Maximo’s work on cool GDS renderings, Proppy has made a few of his hsv2rgb converter project:
Here’s the github repo for the group submission and the Efabless project.
To see how I put the application together check the multi_project_tools.
And here’s a list of the projects - congratulations everyone!
Project Index

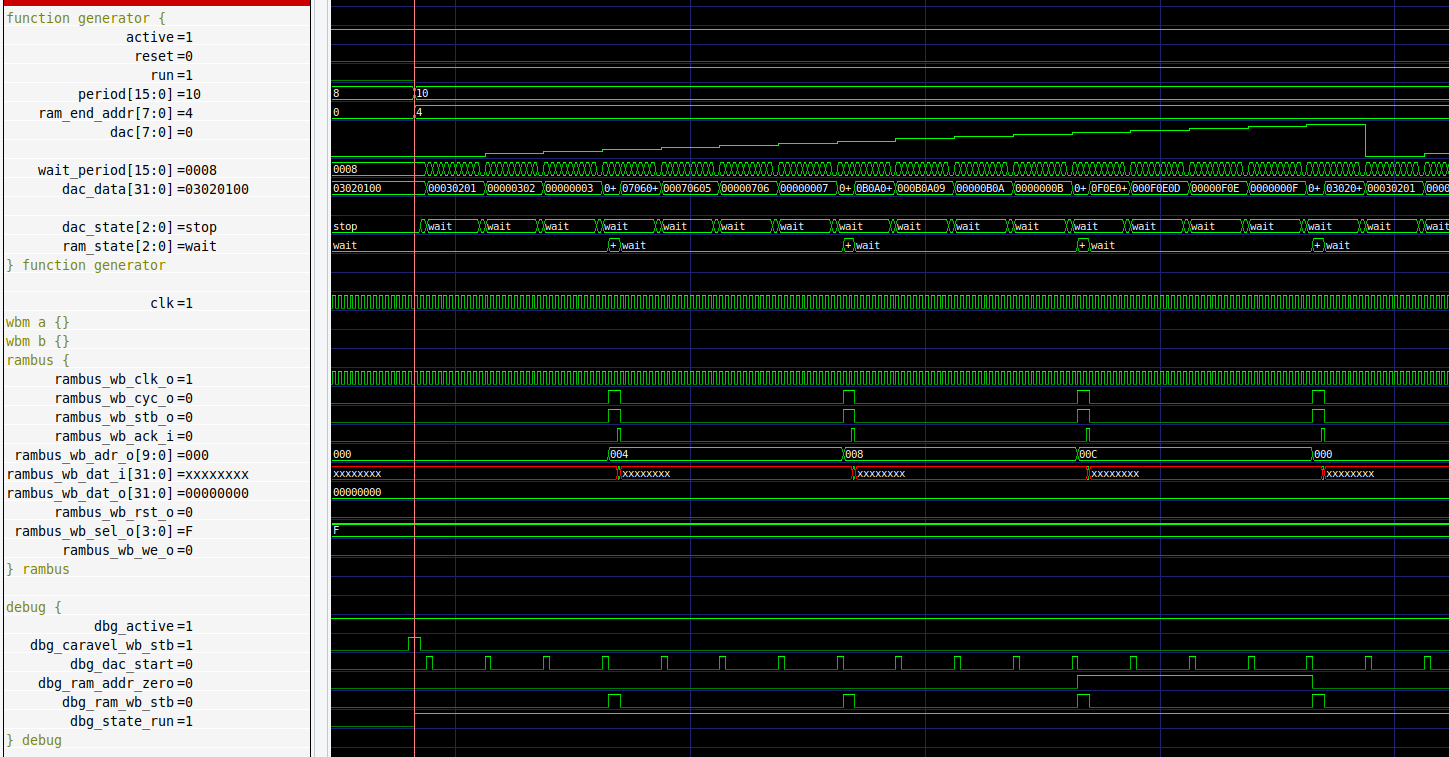

Function generator
- Author: Matt Venn
- Github: https://github.com/mattvenn/wrapped_function_generator
- commit: 9e73784d43a91d70cb1a7c9c5d42037f49ed9e67
- Description: arbitary function generator, using shared RAM as the output data
VGA Clock
- Author: Matt Venn
- Github: https://github.com/mattvenn/wrapped_vga_clock
- commit: 6c7f12b8be62d34d4f4221e18b9408b3c5ac8fcd

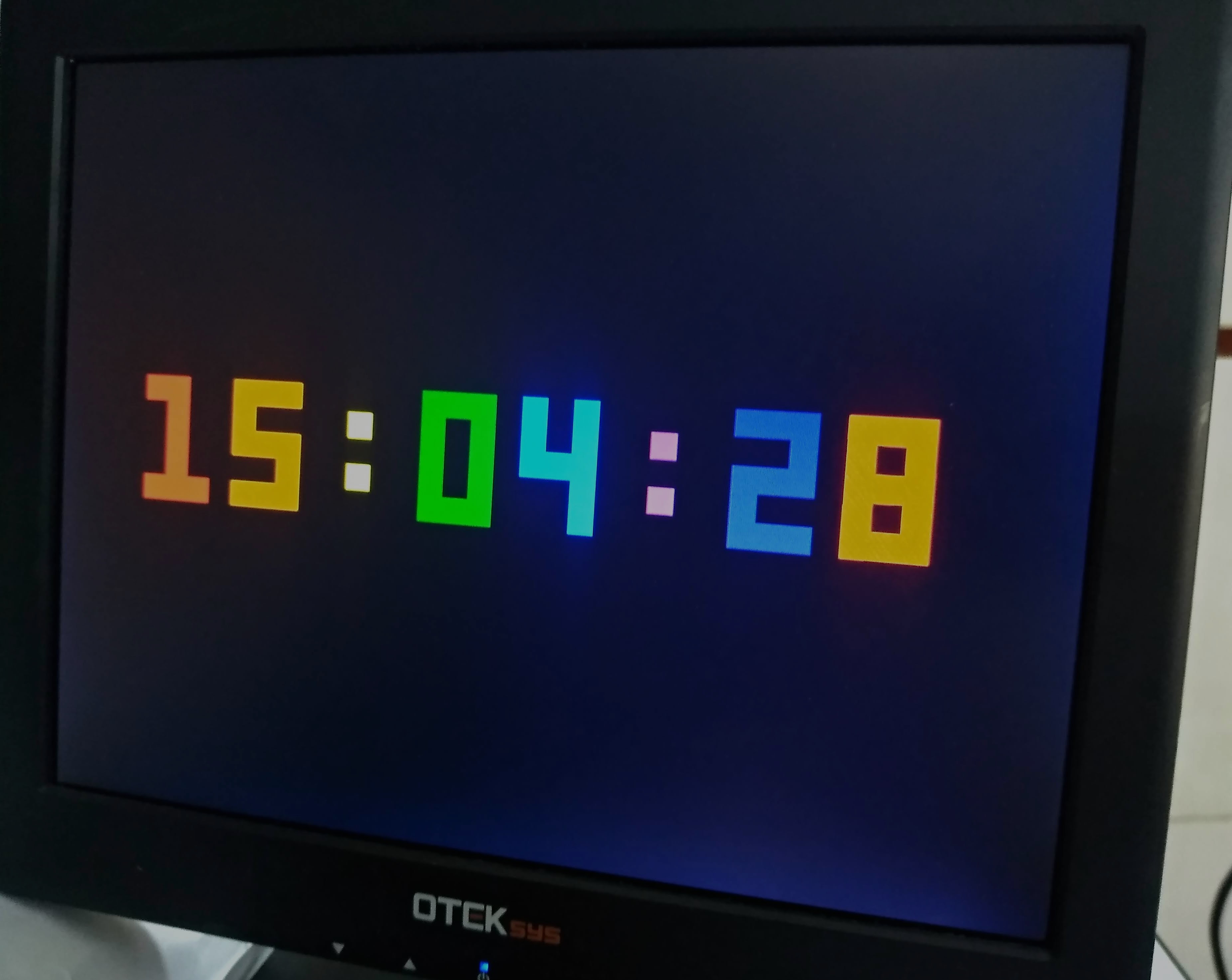

- Description: shows the time on a 640x480 panel
Frequency counter
- Author: Matt Venn
- Github: https://github.com/mattvenn/wrapped_frequency_counter
- commit: 94cd6e626492dc2f623bf06163e90a84bde553cb

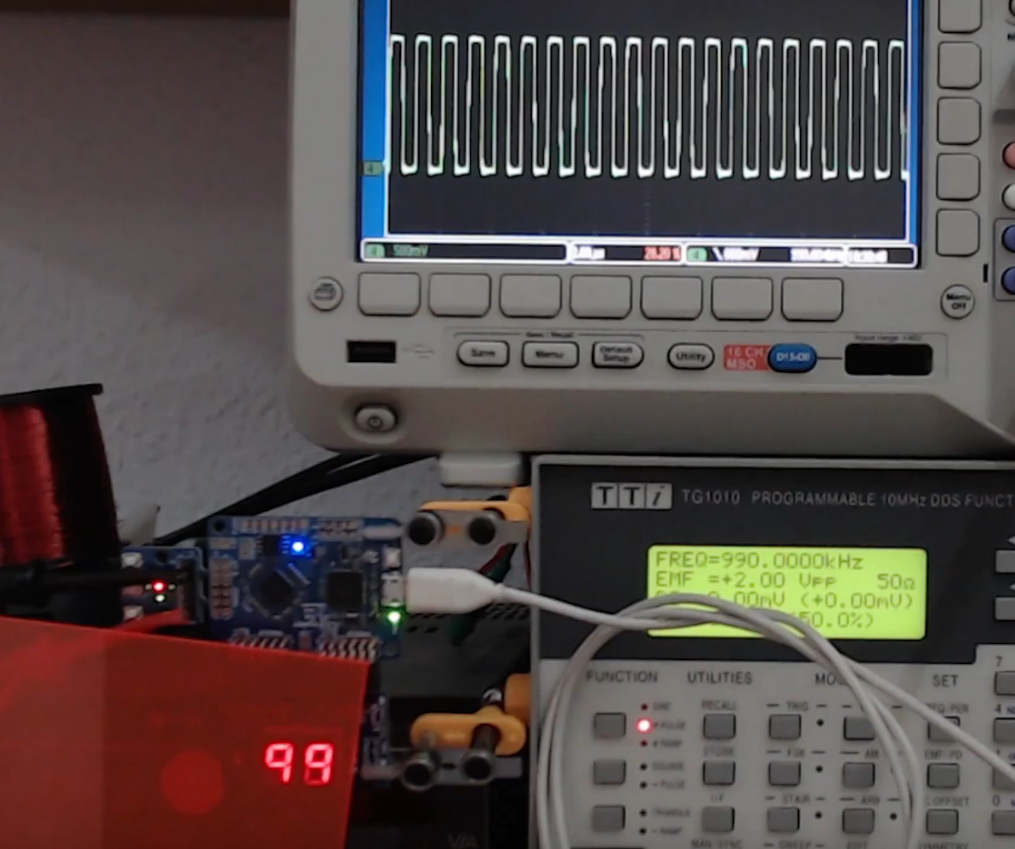

- Description: Counts pulses on input and displays frequency on 2 seven segment displays
RGB Mixer
- Author: Matt Venn
- Github: https://github.com/mattvenn/wrapped_rgb_mixer
- commit: 2676a8904591e92613fbfadf8c7f57fdfd79b1a4
- Description: reads 3 encoders and generates PWM signals to drive an RGB LED
Hack soc
- Author: Maximo Balestrini
- Github: https://github.com/mbalestrini/wrapped_hack_soc
- commit: 54395c53d52f253bd71b35d0a1c2049c87d31103

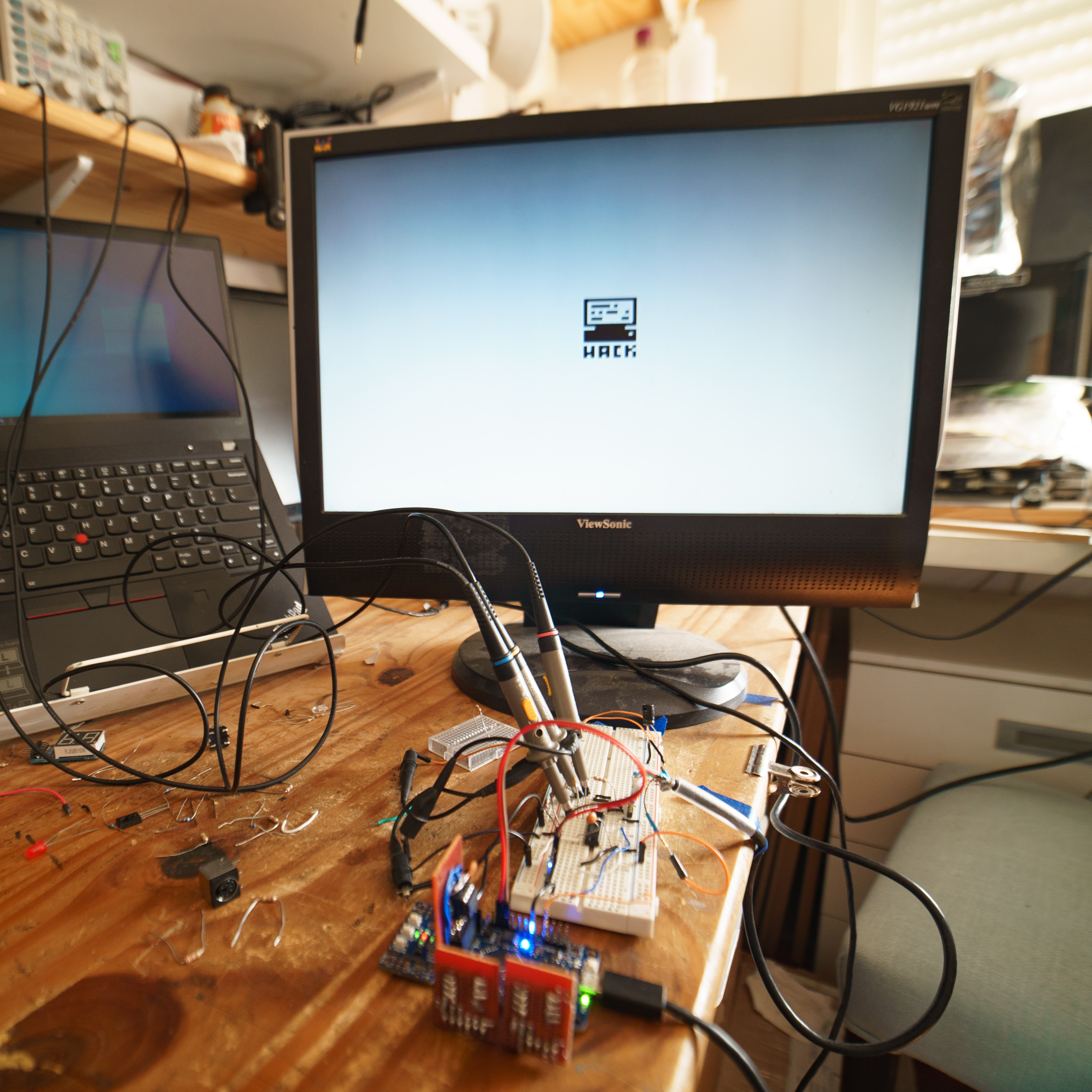

- Description: Hardware implementation of the Hack Computer from the Nand to Tetris courses
teras
- Author: Louis Ledoux AKA Binaryman
- Github: https://github.com/Bynaryman/wrapped_teras
- commit: c119cb48d76e8a4a62c80f98323efb114553c417

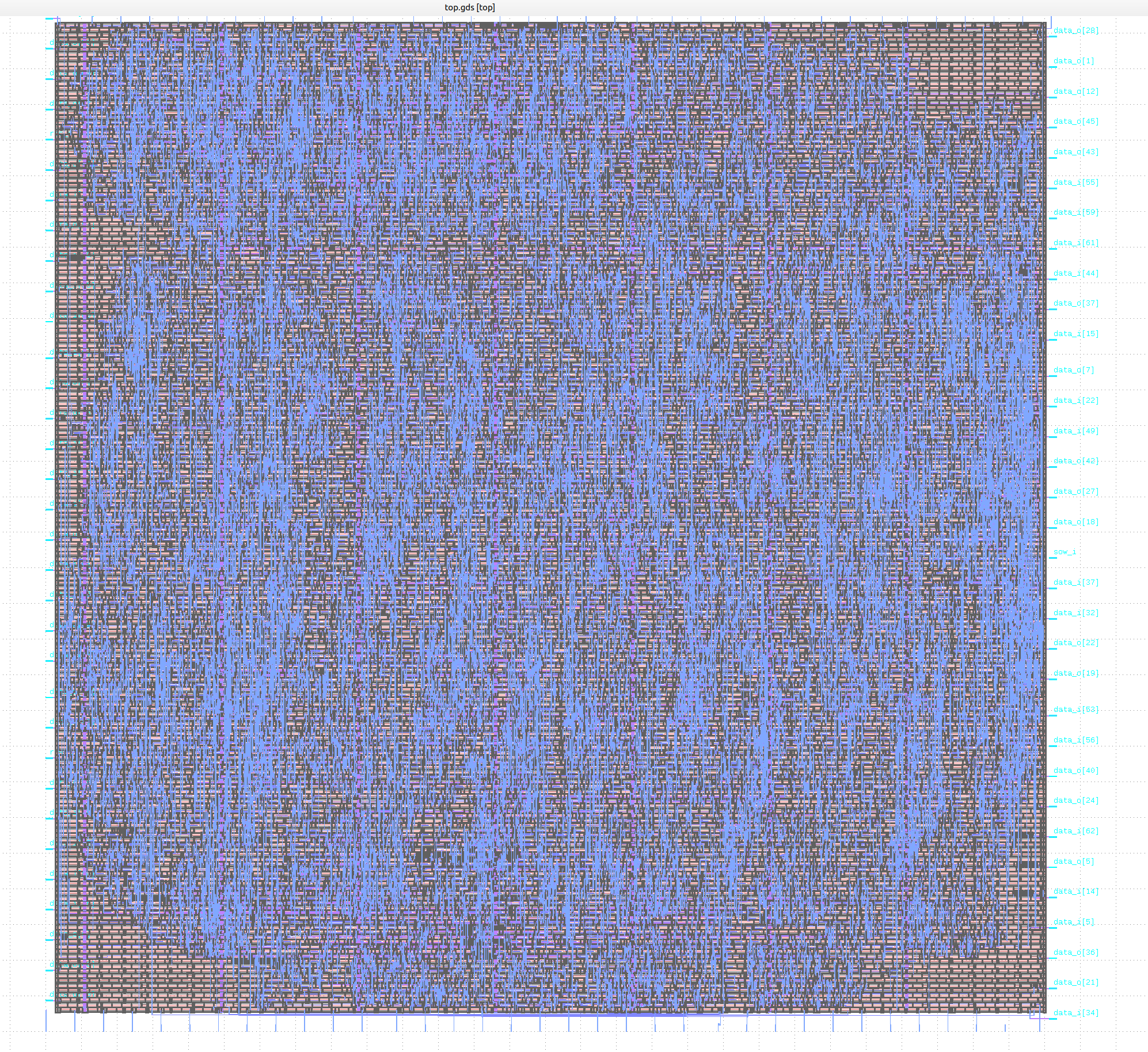

- Description: matrix multiply unit with exact accumulators, no intermediate roundings, fused-dot-products, and posit arithmetic
ALU74181
- Author: Thorsten Knoll
- Github: https://github.com/ThorKn/wrapped_alu74181
- commit: 6e935d2d32acdcc66ab18c5894cb628b6c6b9048

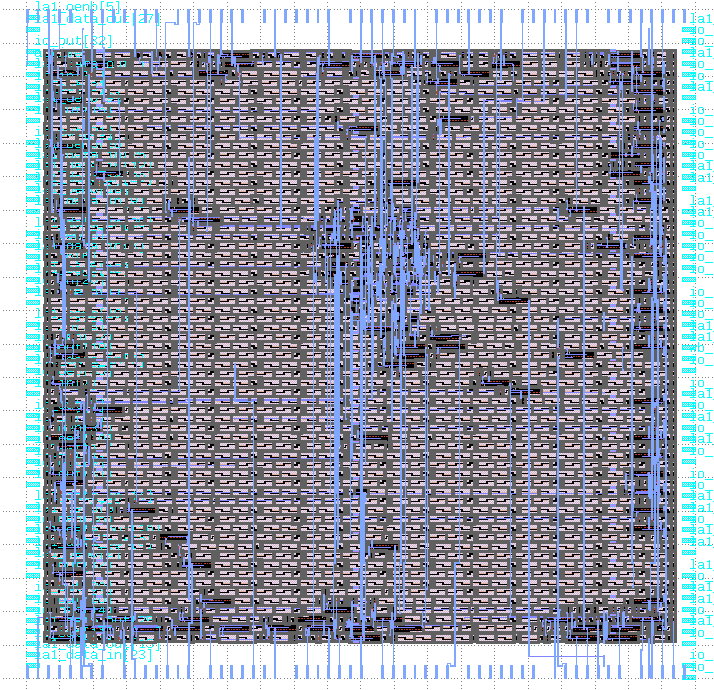

- Description: Rebuild of the 4-bit Arithmetic Logic Unit 74181
vga demo
- Author: Zbigniew Drozd
- Github: https://github.com/zbigos/wrapped-vgademo-on-fpga
- commit: 7fb9353f1a9f5120a0bd7907963a1c65919f33c0

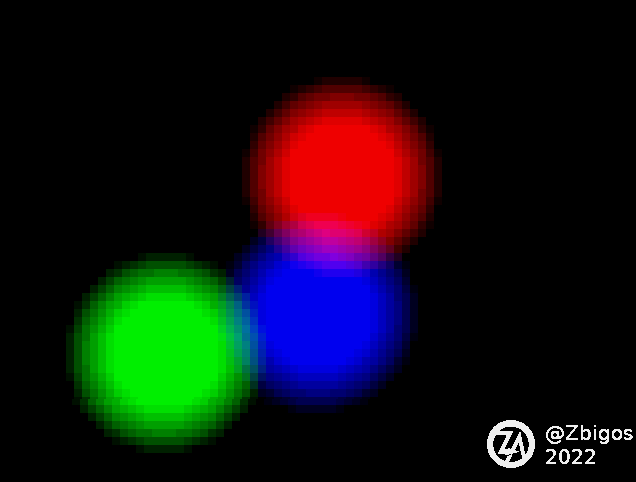

- Description: quick demo displaying three floating blobs
SiLife
- Author: Uri Shaked
- Github: https://github.com/wokwi/wrapped_silife
- commit: 53c45898bd6fc04530bf6e9d17153418db5dd175

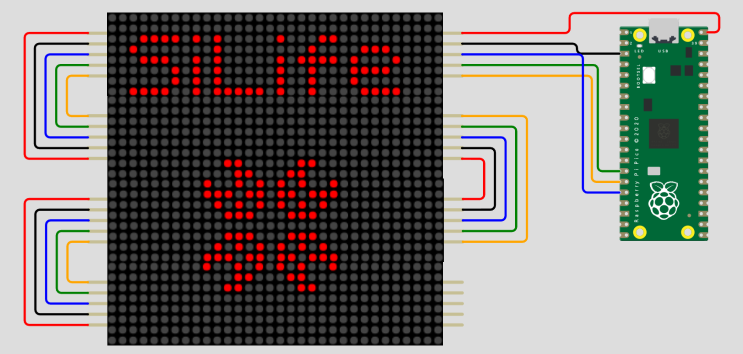

- Description: Game of Life, in Silicon
wrapped_acorn_prng
- Author: Zhenle Cao
- Github: https://github.com/ZhenleC/wrapped_acorn_prng
- commit: 5f7d3e5d0fcc9ffc3845dd7e97f55219ebd112ec

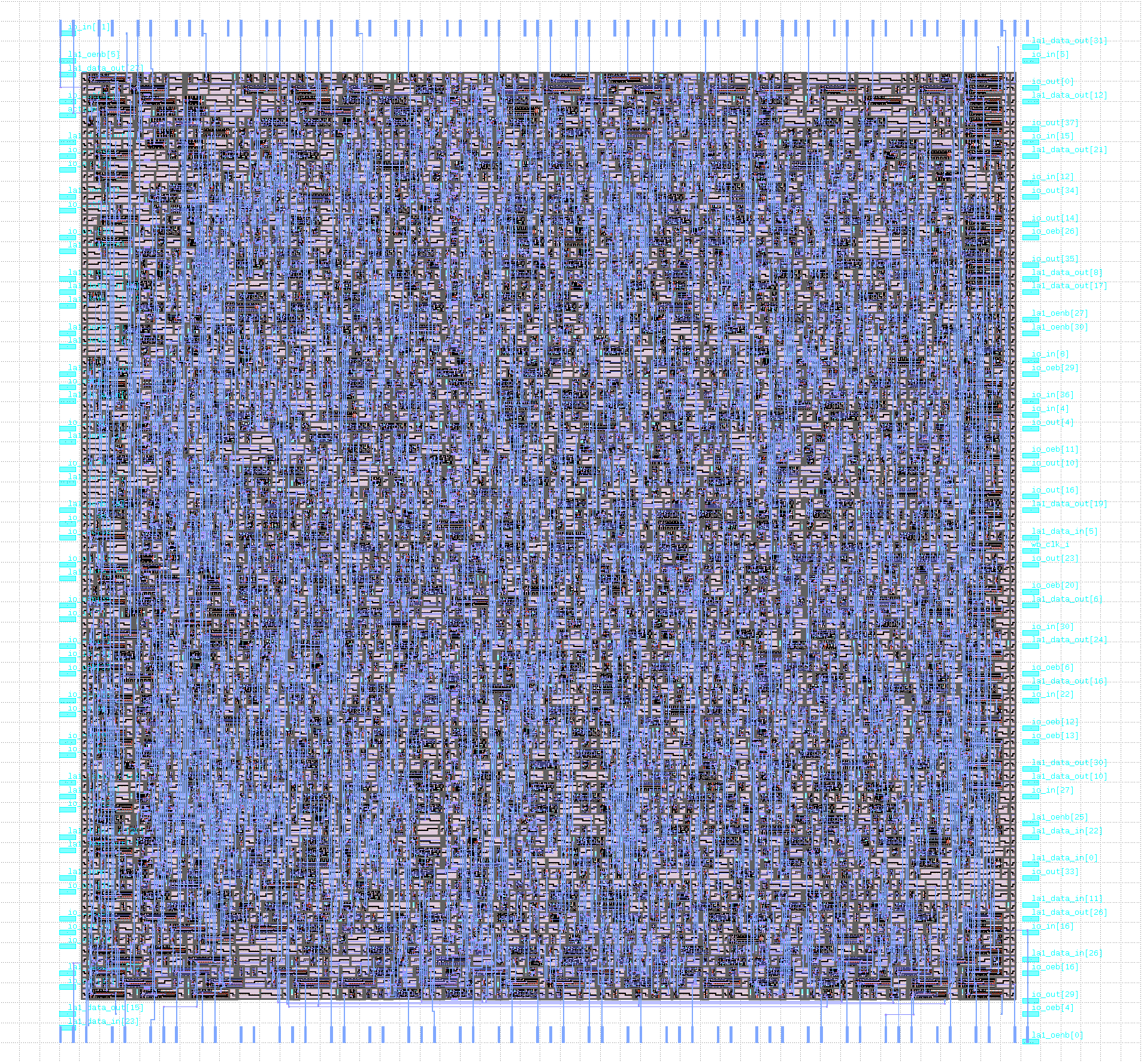

- Description: ACORN (Additive Congruential Random Number) generator, a pseudo random number generator made for the ZerotoASIC course to be taped out on SkyWater Open Source PDK SKY130 process. Design inspired from: http://acorn.wikramaratna.org/ . Huge shoutout and appreciation to Steven Goldsmith for his invaluable assistance with Caravel.
HSV Mixer
- Author: @proppy (forked from Matt Venn)
- Github: https://github.com/proppy/wrapped_hsv_mixer
- commit: 05ab3cfb40c1d934dceb3fe46740a491d4660f6f
- Description: reads HSV values from 3 encoders, convert to them RGB, and generates PWM signals to drive an RGB LED
SkullFET
- Author: Uri Shaked
- Github: https://github.com/wokwi/wrapped_skullfet
- commit: 927e7275e6ba42f02fec99f5928941eeb985ee29

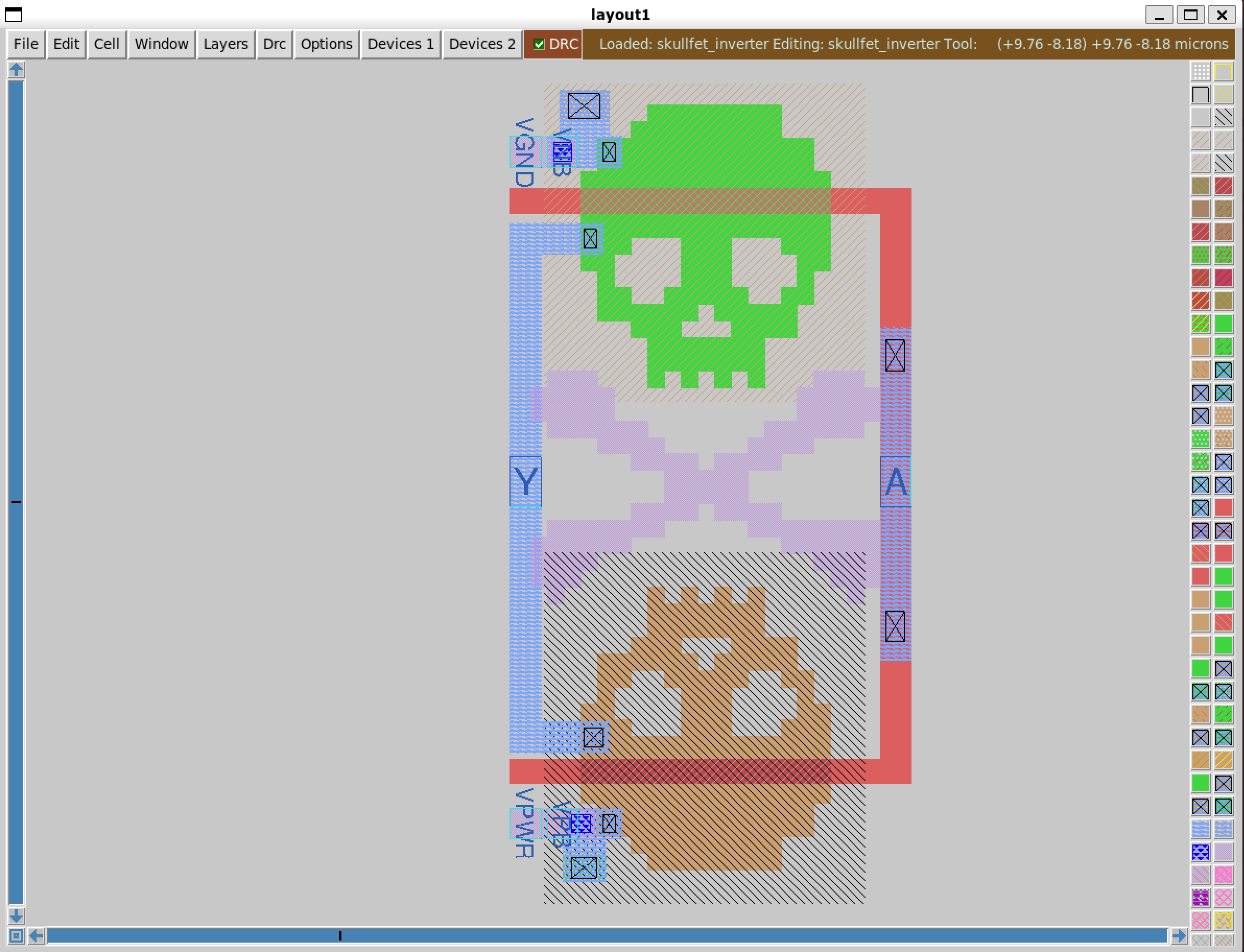

- Description: Barebone MOSFET transistors
